Adding Block Storage via the SoftNAS UI

You can not only add disks from within the Azure Portal, but also quickly and easily from the SoftNAS UI. Users can add Microsoft block storage disks, allowing you to leverage them for pools and volumes.

Enter the IP address of your instance in order to call upon the SoftNAS login screen.
Enter your username and password and click Login.

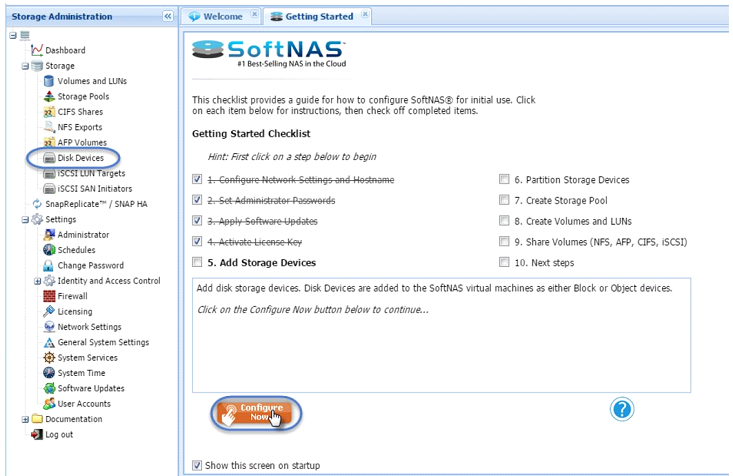

SoftNAS StorageCenter will open. If this is your first login, you will be greeted by the End User License Agreement, then the Getting Started Checklist. To add storage, select Add Storage Devices from the checklist, then click Configure Now, or select Disk Devices from the Storage Administration pane.

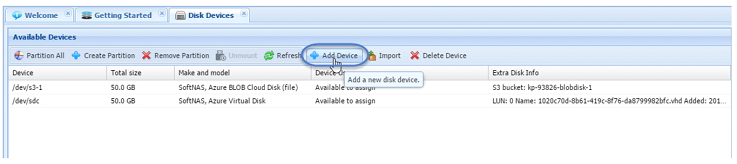

The Disk Devices tab will open (if it does not, select it). Click Add Device.

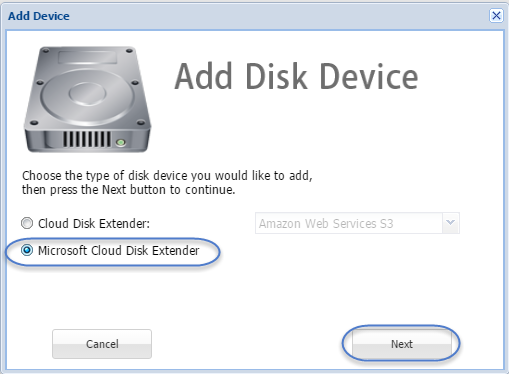

From the Add Disk Device wizard, select the second option, Microsoft Cloud Disk Extender. Click Next.

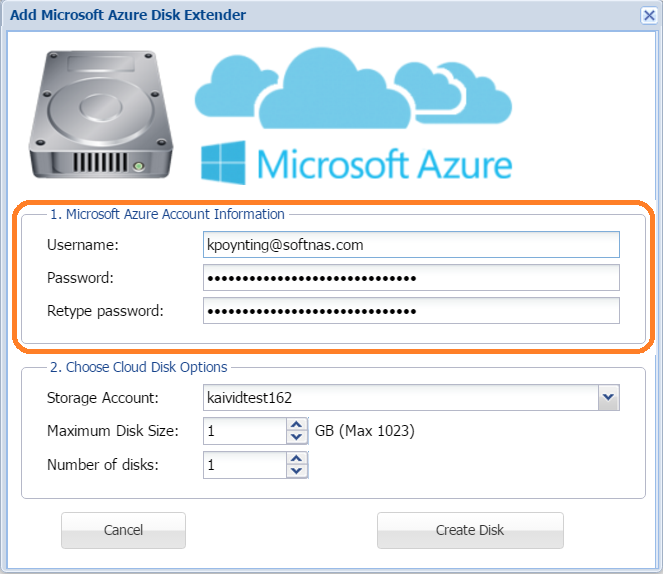

Provide the service administration account with access to the appropriate subscriptions.

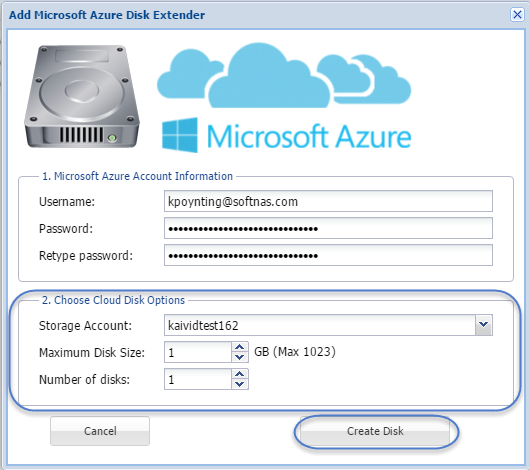

Select the appropriate storage account, then set the disk size, and the number of disks you wish to create.
Click Create Disk.

Note: SoftNAS displays "Creating..." in the Device Usage column until the Adding Disk process is complete. The process is complete when Device Usage reads 'Available to Assign'.

It is very simple to add a new disk to your SoftNAS instance using the SoftNAS UI. You can now use your newly added disks to create pools and volumes.
