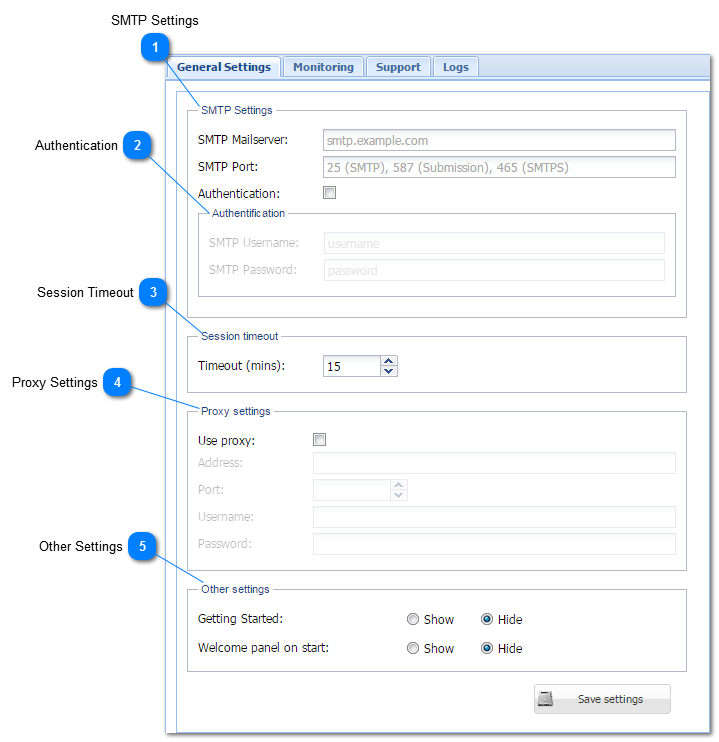

General Settings

SMTP Settings

The SMTP settings enable the Administrator to specify the organization's corporate mail server. SoftNAS will then use this mail server when sending email notifications to stakeholders.

Parameter	Description
SMTP Mailserver	Enter the FQDN of the corporate mail server.
SMTP Port	Enter the port which SoftNAS will use to contact the mail server. Possible values: 25 587 465

Top

Authentication

Authentication can be enabled to create a secure connection between SoftNAS and the mail server. If authentication credentials are required they can be entered here.

Parameter	Description
SMTP Username	Username used to authenticate with the mail server.
SMTP Password	Password used to authenticate with the mail server.

Top

Session Timeout

Setting which controls how long an inactive session SoftNAS browser session will remain up before the server terminates the connection. Default setting is 15 minutes.

Top

Proxy Settings

Allows you to connect to SoftNAS instances using a proxy server intermediary.

Parameter	Description
Use proxy	Enable/disable connection to SoftNAS via proxy server.
Address	IP Address of the proxy server.
Port	Port to connect to the proxy server.
Username	Username to connect to the proxy server.
Password	Password to connect to the proxy server.

Top

Other Settings

The following other settings can be configured

Parameter	Description
Getting Started	Enables/disables the Getting Started panel from launching when logging into SoftNAS.
Welcome panel on start	Enables/disables Welcome panel when logging into SoftNAS.
